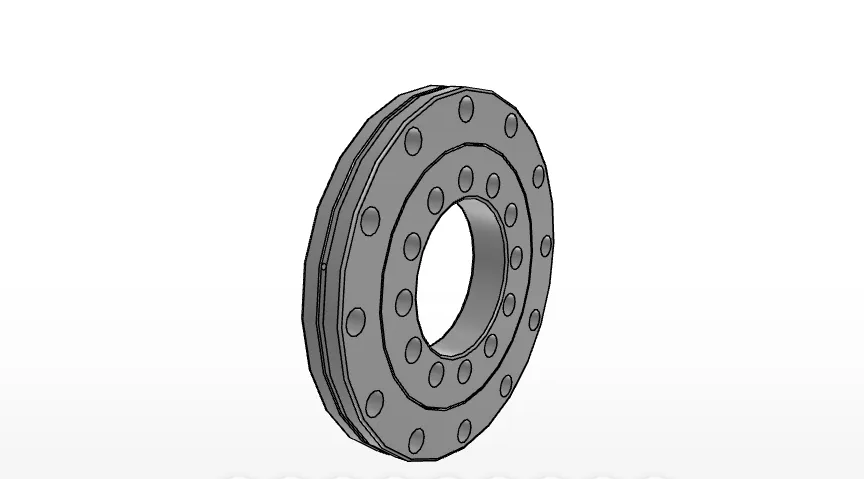

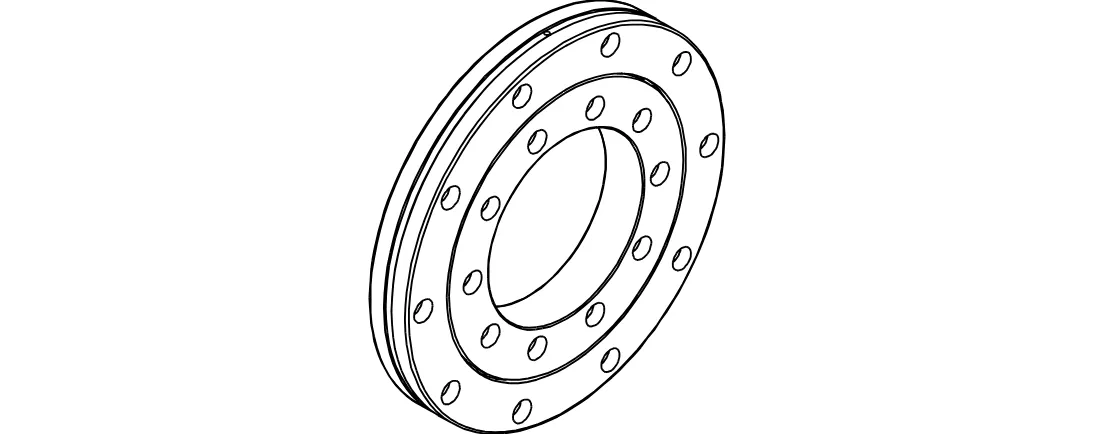

IKO CRBFV9025AT1
Mounting Holed Type High Rigidity Crossed Roller Bearings, Separator, High Carbon Steel, Open, Small Clearance, Female Threaded Mounting Holes on Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CRBFV9025A
Shaft Diameter
90
mm
Inside Diameter
90
mm
Outer Diameter
210
mm
Width
25
mm
Min.Chamfer
1.5
mm
Min.Chamfer
1.5
mm
Basic dynamic load rating
73400
N
Basic static load rating
108000
N
Diameter
112
mm
Diameter
187
mm
InnerRmounting
12-9, Counterbore 14 depth 12
OuterRmounting
12-9, Counterbore 14 depth 12
Mass
4.67
kg
