INA CSEB055
Thin Section Bearings

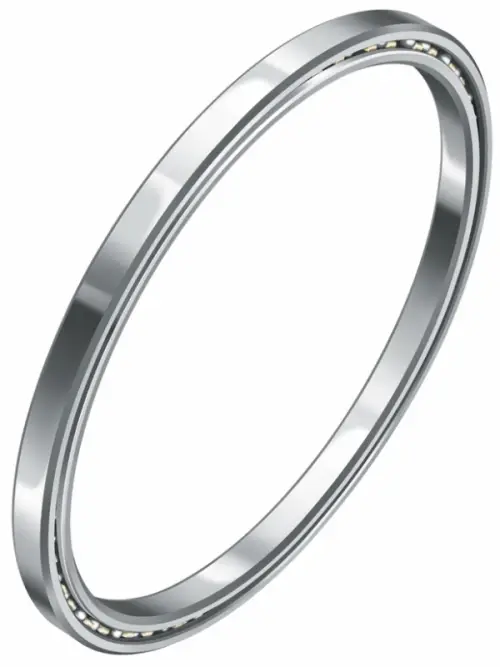

Angular contact ball bearing, Thin section bearing CSEB, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

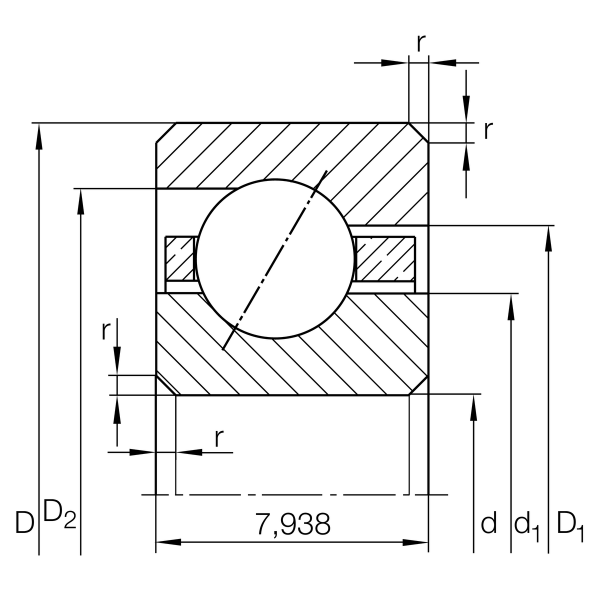

Main Dimensions & Performance Data
d
139.7 mm
Bore diameter
D
155.575 mm
Outside diameter
B
7.938 mm
Width
Cr
6,700 N
Basic dynamic load rating, radial
C0r
11,100 N
Basic static load rating, radial
CG
3,900 1/min
Limiting speed
≈m
190 g
Weight
