INA CSEC050
Thin Section Bearings
Angular contact ball bearing, Thin section bearing CSEC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

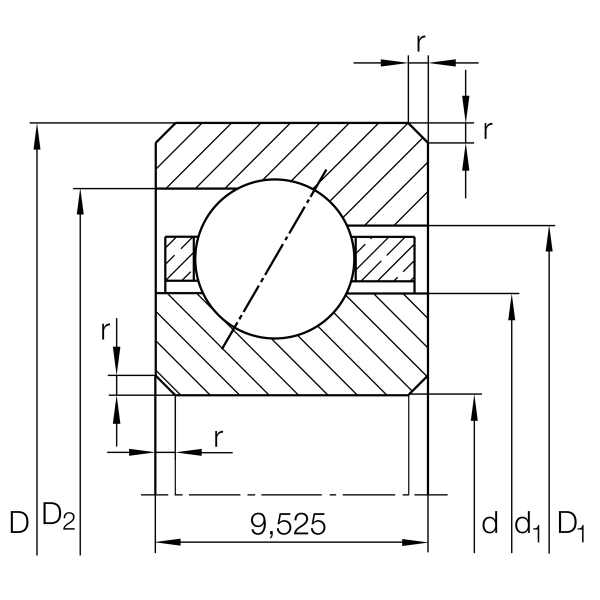

Main Dimensions & Performance Data
d
127 mm
Bore diameter
D
146.05 mm
Outside diameter
B
9.525 mm
Width
Cr
8,700 N
Basic dynamic load rating, radial
C0r
12,600 N
Basic static load rating, radial
CG
4,200 1/min
Limiting speed
≈m
240 g
Weight
