NTN DCL126
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
8500 RPM
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Open
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/o Oil Hole
Static Load Rating
6950 N
Dynamic Load Rating
6450 N
Operating Temperature Range
-40 to 120 ºC

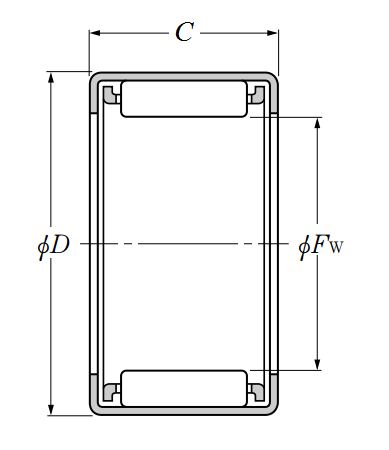

Dimensional Specifications
Fw
19.050 mm
D
25.400 mm
C
9.525 mm
