SKF GEC 900 FBAS

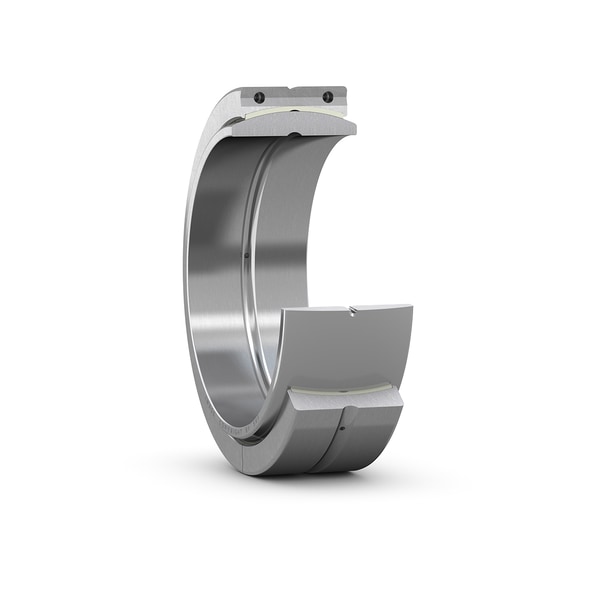

Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
900.0 mm
Bore diameter
D
1180.0 mm
Outside diameter
B
375.0 mm
Width
C
320.0 mm
Width outer ring
α
3.0 °
Angle of tilt
dk
1040.0 mm
Raceway diameter inner ring
b
35.0 mm
Width annular lubrication groove at outer ring
b1
35.1 mm
Width annular lubrication groove at inner ring
M
13.0 mm
Diameter lubrication hole (outer ring)
r1
3.0 mm
Chamfer dimension bore
r2
6.0 mm
Chamfer dimension outer ring
mass
1115.0 kg
Product net weight
