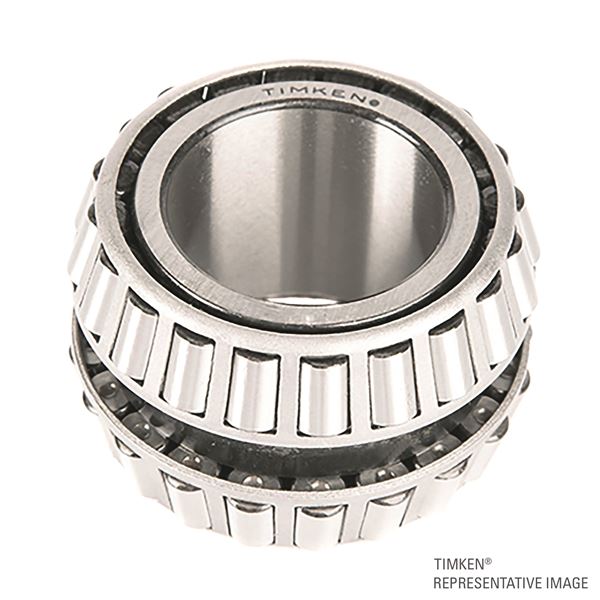

Timken HM259049DW
Tapered Roller Bearings - Double Tapered Cones - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
HM259000
Cone Part Number
HM259049DW
Design Units
Imperial
Cage Type
Pin-Type
C1 - Dynamic Radial Rating (1 million revolutions)1
1680000 N
C0 - Static Radial Rating
3140000 N
Note
This part has a non-standard shoulder design. Please email customer CAD for shoulder details to ensure the proper design of mating components.

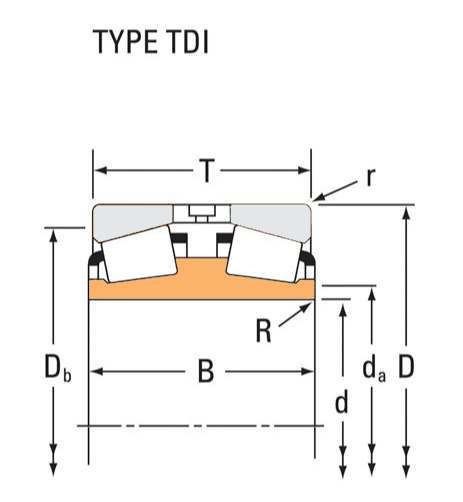

Dimensions
d - Cone Bore
317.500 mm
B - Double Cone Width
158.750 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius2
3.300 mm
da - Cone Frontface Backing Diameter
340 mm
Ab - Cage-Cone Frontface Clearance
5.3 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
435000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4
2920000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5
757000 N
C6
249000 N
Factors
K - Factor7
1.74
Cg - Geometry Factor8
0.186
