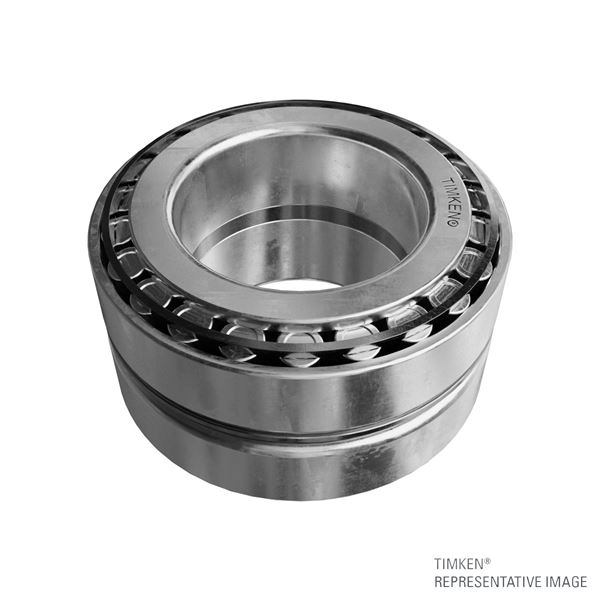

Timken HM911242 – HM911210 (K85610 – K85611)

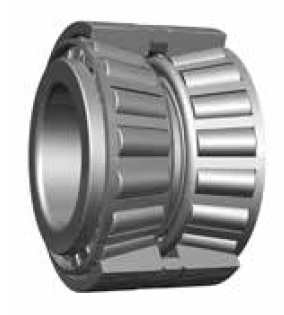

Tapered Roller Bearings - 2TS-IM (Matched Bearing Assembly, Indirect Mount)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
HM911242 – HM911210 (K85610 – K85611)
Specifications
Cone Part Number
HM911242
Cup Part Number
HM911210
Inner Spacer Part Number
K85610
Outer Spacer Part Number
K85611
Design Unit
Inch
Dimensions
d - Bore
53.975 mm
D - Cup Outer Diameter
130.175 mm
T - Width
130.277 mm
C - Width
104.775 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.600 mm
r - Cup Backface "To Clear" Radius2
0.8 mm
db - Cone Backface Backing Diameter
79 mm
Da - Cup Frontface Backing Diameter
123.95 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
51200 N
C1 - Dynamic Radial Rating (1 million revolutions)4
344000 N
C5
71900 N
C906
89200 N
Factors
K - Factor7
0.71
e - ISO Factor8
0.82
Y1 - ISO Factor9
0.82
Y2 - ISO Factor10
1.23
