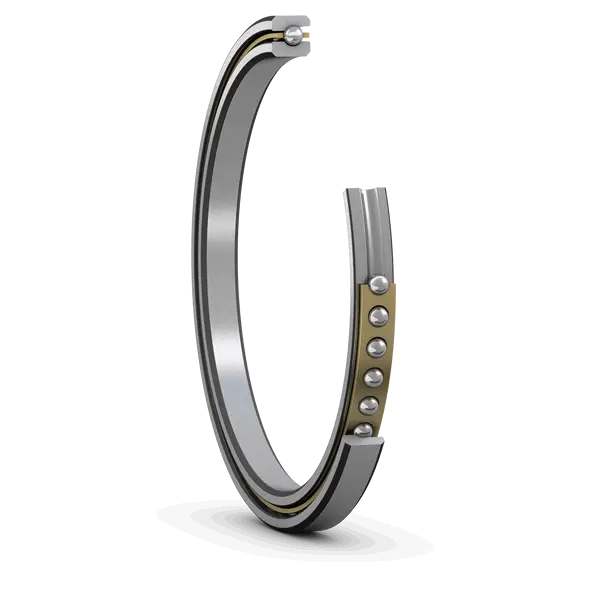

SKF KDN.NA040AR0
Reali-Slim thin section angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
101.595 mm
Bore diameter
D
114.308 mm
Outside diameter
H
6.35 mm
Radial cross section
B
6.35 mm
Width
d1
106.324 mm
Shoulder diameter inner ring
D1
109.576 mm
Shoulder diameter outer ring
D4
110.922 mm
Shoulder diameter outer ring
mass
0.09 kg
Product net weight
