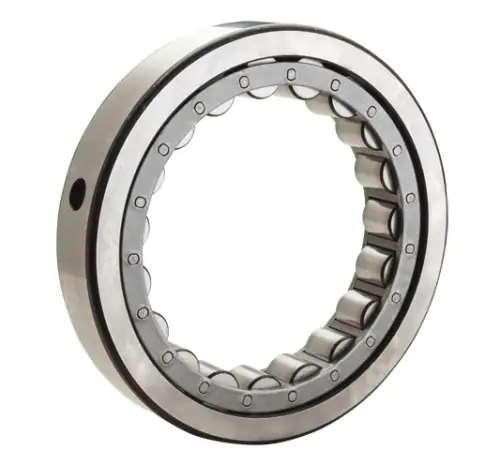

NTN M1317EHL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
315000 N
Dynamic Load Rating
269000 N
Enclosure
Open
Weight
3.907 kg
Operating Temperature Range
-40 to 120 ºC

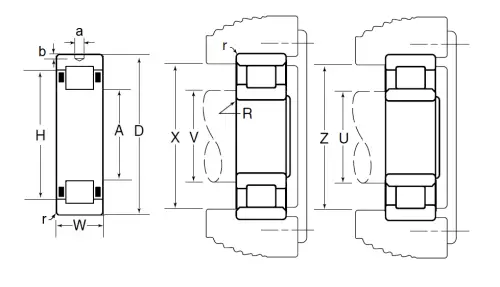

Dimensional Specifications
A
108.530 mm
D
180.000 mm
W
41.000 mm
r
2.540 mm
H
148.640 mm
a
11.130 mm
b
4.570 mm
U (Plain Rings)
102.900 mm
V (Rib Rings)
108.500 mm
X (Plain Rings)
164.300 mm
Z (Rib Rings)
157.200 mm
