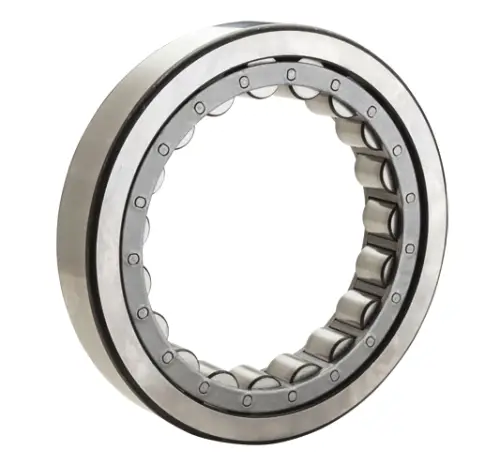

NTN M1320UX
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
490000 N
Dynamic Load Rating
390000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
A
130.180 mm
D
215.000 mm
C
175.060 mm
W
47.000 mm
r
2.540 mm
H
175.060 mm
