INA RABRB40/85-XL-FA106
Insert Ball Bearings and Belt Tension Pulleys

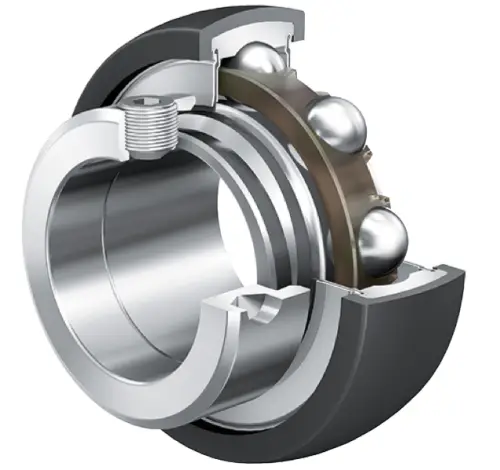

Radial insert ball bearings RABR, with rubber interliner, location by eccentric locking collar, P seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

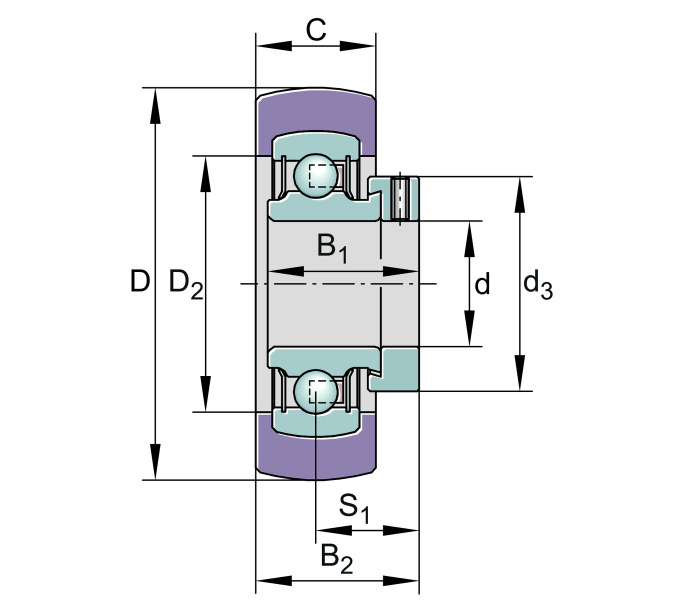

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
85 mm
Outside diameter
C
27 mm
Width, outer ring
B2
46.3 mm
Width total
B1
43.8 mm
Locking collar total width
Cr
34,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
Cur
1,030 N
Fatigue load limit, radial
3,500 N
Load carrying capacity (rubber interliner)
≈m
0.652 kg
Weight
