INA RAE30-XL-NPP-FA106
Insert Ball Bearings and Belt Tension Pulleys

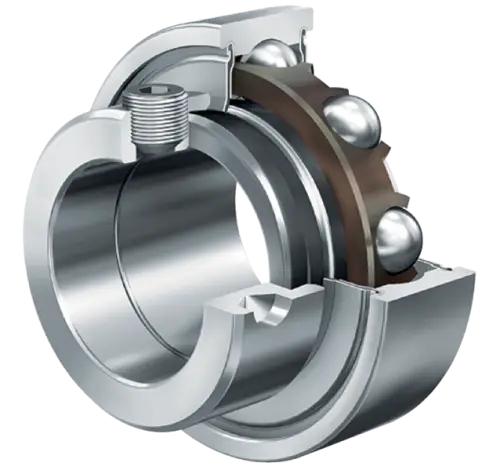

Radial insert ball bearing RAE..-XL-NPP
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

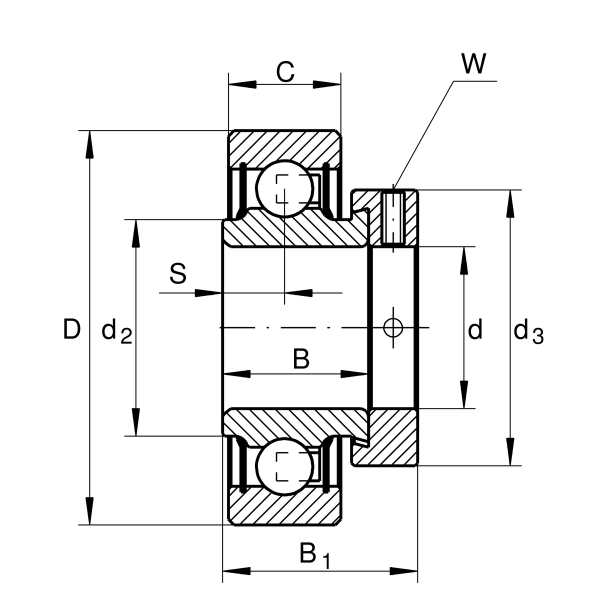

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
62 mm
Outside diameter
B
23.8 mm
Width
B1
35.8 mm
Locking collar total width
Cr
19,500 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
Cur
480 N
Fatigue load limit, radial
≈m
0.308 kg
Weight
