FAG S6201-2RS-FD>W
Deep Groove Ball Bearings

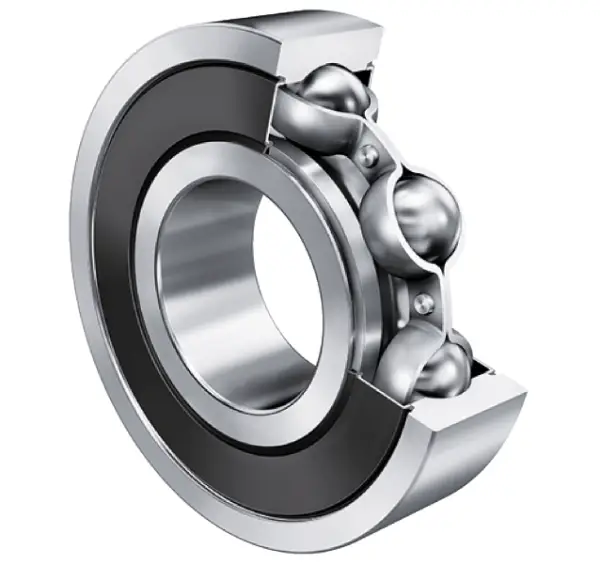

Deep groove ball bearing S62..-2RS-FD, corrosion-resistant materials, for Food industry, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

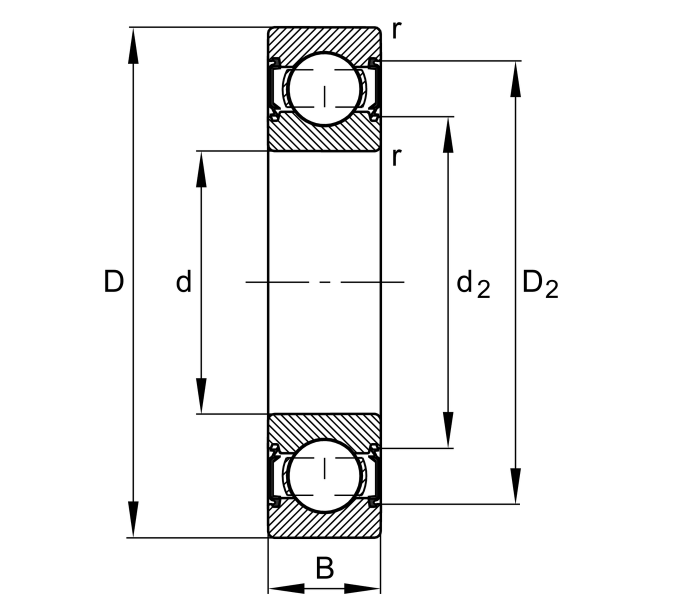

Main Dimensions & Performance Data
d
12 mm
Bore diameter
D
32 mm
Outside diameter
B
10 mm
Width
Cr
6,820 N
Basic dynamic load rating, radial
C0r
3,050 N
Basic static load rating, radial
Cur
139 N
Fatigue load limit, radial
CG
17,000 1/min
Limiting speed
≈m
0.036 kg
Weight

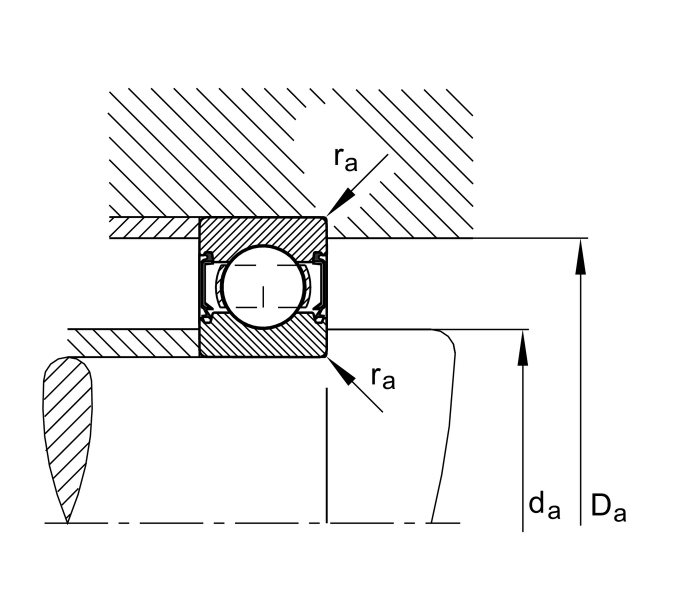

Mounting dimensions
da min
16.2 mm
Minimum diameter shaft shoulder
da min
27.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
