FAG S6301-2RS-FD>W
Deep Groove Ball Bearings
Deep groove ball bearing S63..-2RS-FD, corrosion-resistant materials, for Food industry, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

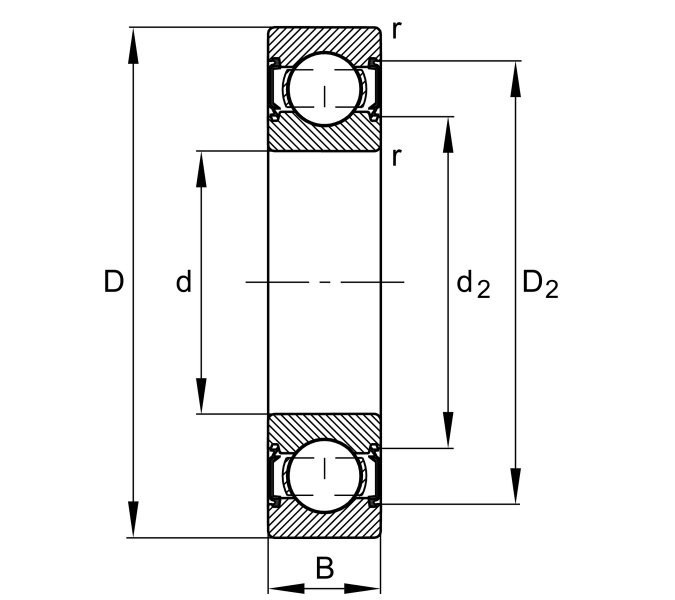

Main Dimensions & Performance Data
d
12 mm
Bore diameter
D
37 mm
Outside diameter
B
12 mm
Width
Cr
9,710 N
Basic dynamic load rating, radial
C0r
4,190 N
Basic static load rating, radial
Cur
190 N
Fatigue load limit, radial
CG
16,000 1/min
Limiting speed
≈m
0.06 kg
Weight

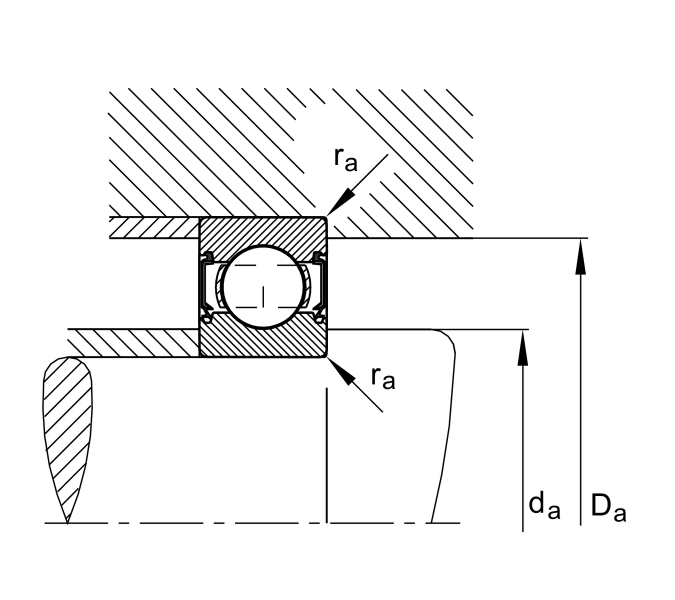

Mounting dimensions
da min
17.6 mm
Minimum diameter shaft shoulder
da min
31.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
