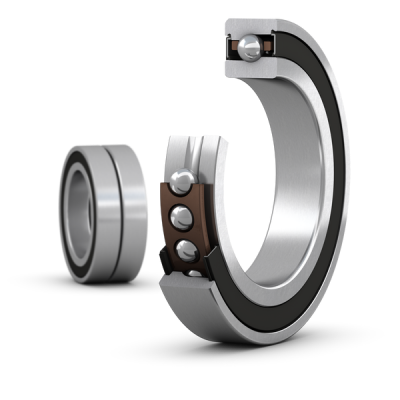

SKF S7006 CE/P4ADBA
Matched set of two super-precision, high-speed E design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
55.0 mm
Outside diameter
B
26.0 mm
Width
d1
38.2 mm
Shoulder diameter of inner ring (large side face)
D4
50.0 mm
Recess diameter outer ring shoulder (small side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
0.228 kg
Product net weight
Abutment dimensions
da
34.6 mm
Diameter of shaft abutment
da
37.8 mm
Diameter of shaft abutment
Db
50.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
