SKF S9B-22X33X4.2-AD1

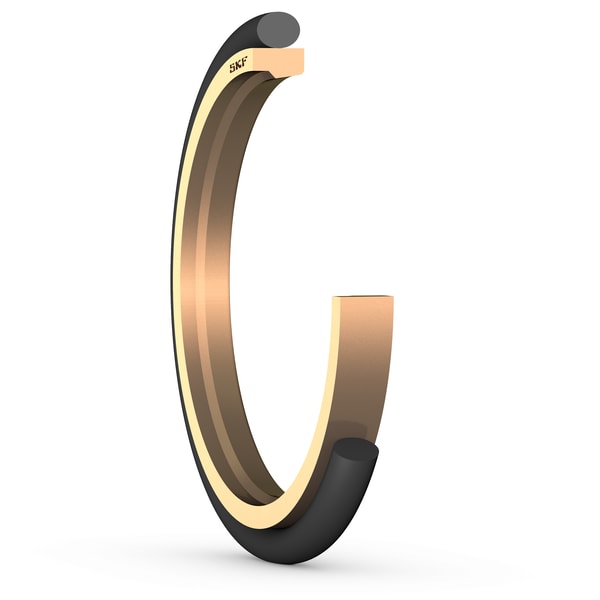

Hydraulic buffer seal, with O-ring energizer and PTFE or X Ecopur slide ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
22.0 mm
Rod diameter
D
33.0 mm
Housing groove diameter
L
4.2 mm
Housing groove width
S
5.5 mm
Radial depth
R
0.5 mm
Groove radius
C
2.5 mm
Lead-in chamfer length
mass
0.0036 kg
Product net weight
