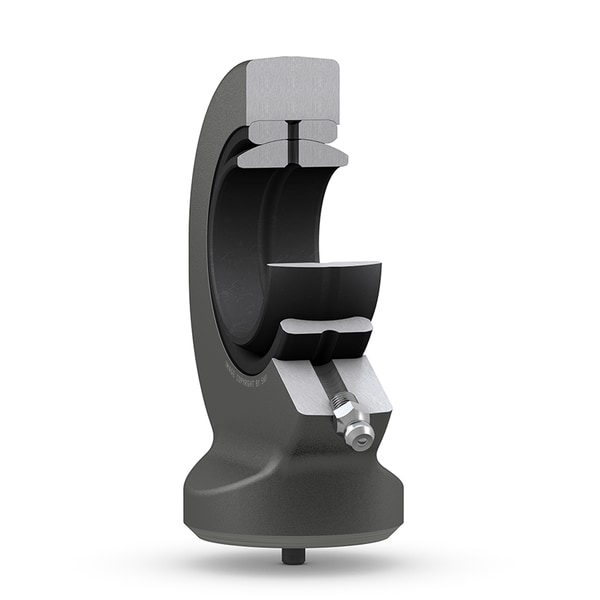

SKF SC 50 ES
Rod end, requires maintenance, cylindrical section welding shank
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
d2
114.0 mm
Diameter head
B
35.0 mm
Width inner ring
C1
31.0 mm
Width head
h2
88.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
66.0 mm
Raceway diameter inner ring
d5
64.0 mm
Diameter welding shank
d6
6.0 mm
Diameter centering pin at welding shank end
l6
150.0 mm
Length (height) housing
l7
58.0 mm
Distance shank chamfer - centre rod end eye
l8
4.0 mm
Length chamfer at welding shank end
r1
0.6 mm
Chamfer dimension bore
mass
2.68 kg
Product net weight
