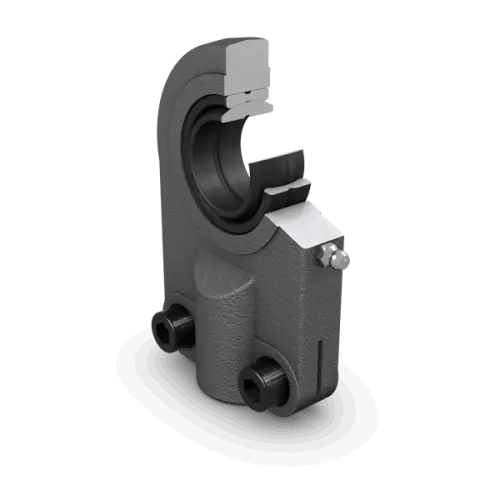

SKF SIJ 30 ES
Rod end, requiring maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
d2
80.0 mm
Diameter head
B
22.0 mm
Width inner ring
G
M 20x1.5
Thread
C1
19.0 mm
Width head
h1
85.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
40.7 mm
Raceway diameter inner ring
d4
36.0 mm
Housing diameter shank
l3
29.0 mm
Length thread
l4
126.0 mm
Length (height) housing
l7
35.0 mm
Distance shank chamfer - centre rod end eye
N
80.0 mm
Width shank
N1
19.0 mm
Thickness shank base for clamping bolts
r1
0.6 mm
Chamfer dimension bore
mass
1.16 kg
Product net weight
