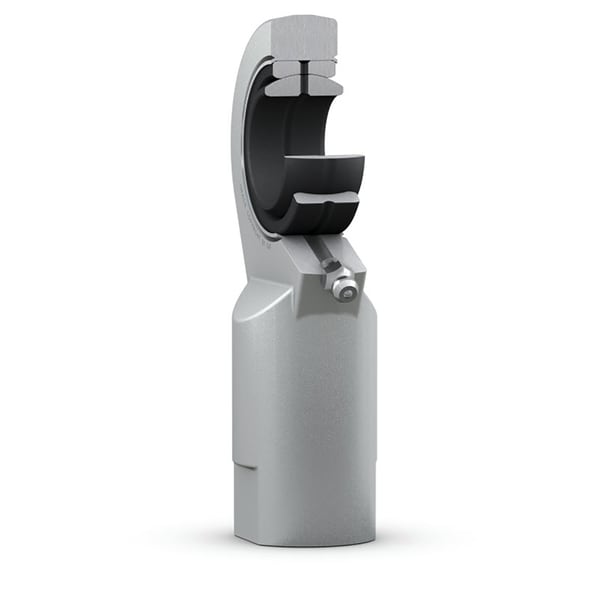

SKF SIL 17 ES
Rod end, requires maintenance, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
17.0 mm
Bore diameter
d2
47.0 mm
Diameter head
B
14.0 mm
Width inner ring
G
M 16
Thread
C1
11.5 mm
Width head
h1
67.0 mm
Height shank end face - centre rod end eye
α
10.0 °
Angle of tilt
dk
25.0 mm
Raceway diameter inner ring
d4
25.0 mm
Diameter shank
l3
24.0 mm
Length thread
l4
92.0 mm
Length (height) housing
l5
15.0 mm
Length wrench flat
l7
22.0 mm
Distance shank chamfer - centre rod end eye
w
22.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.25 kg
Product net weight
