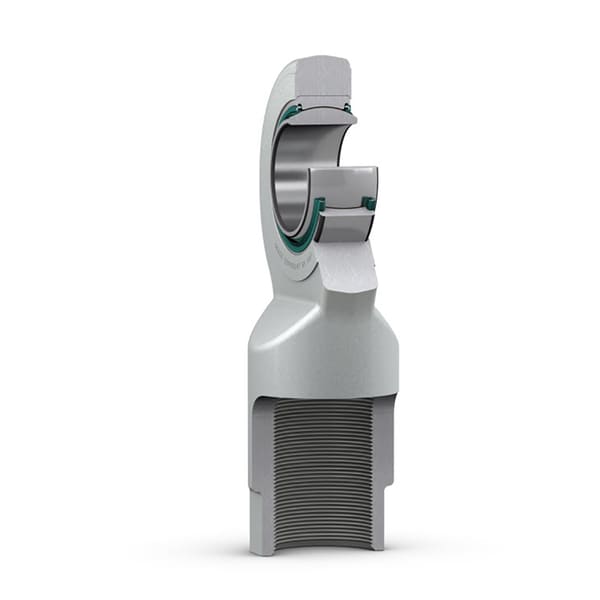

SKF SIL 50 TXE-2LS
Rod end, maintenance-free, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
d2
114.0 mm
Diameter head
B
35.0 mm
Width inner ring
G
M 52x3
Thread
C1
31.0 mm
Width head
h1
195.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
66.0 mm
Raceway diameter inner ring
d4
70.0 mm
Diameter shank
l3
68.0 mm
Length thread
l4
254.0 mm
Length (height) housing
l5
30.0 mm
Length wrench flat
l7
58.0 mm
Distance shank chamfer - centre rod end eye
w
60.0 mm
Size wrench
r1
0.6 mm
Chamfer dimension bore
mass
4.6 kg
Product net weight
