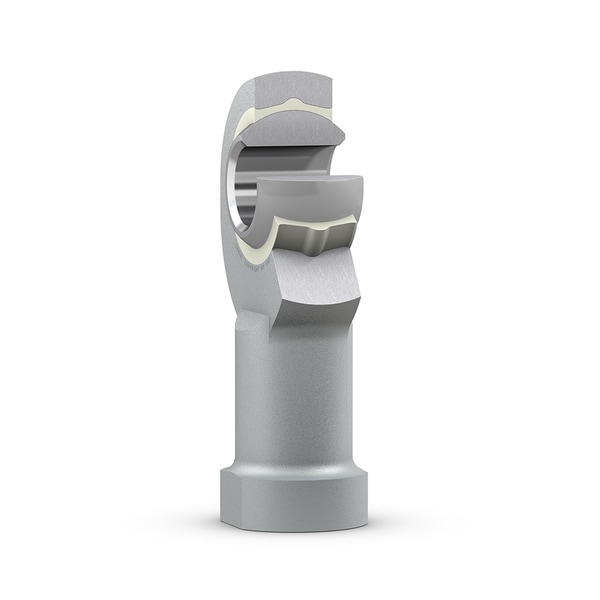

SKF SILKB 16 F
Rod end, maintenance-free, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
16.0 mm
Bore diameter
d2
43.0 mm
Diameter head
B
21.0 mm
Width inner ring
G
M 16
Thread
C1
15.5 mm
Width head
h1
64.0 mm
Height shank end face - centre rod end eye
α
15.0 °
Angle of tilt
dk
28.575 mm
Raceway diameter inner ring
d3
22.0 mm
Housing diameter shank
d4
29.0 mm
Housing diameter shank
l3
24.0 mm
Length thread
l4
87.0 mm
Length (height) housing
l5
8.0 mm
Length wrench flat
l7
21.0 mm
Distance shank chamfer - centre rod end eye
w
22.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.223 kg
Product net weight
