INA NX35-Z-XL
Needle Roller/Axial Ball Bearings

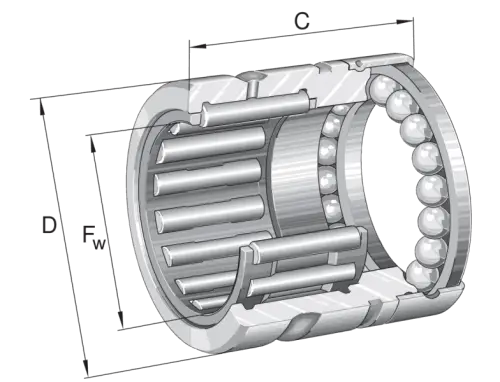

Needle roller/axial ball bearings NX..-Z, single direction axial component, for grease lubrication
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
Fw
35 mm
Bore diameter
D
47 mm
Outside diameter
C
30 mm
Height
Cr
27,500 N
Basic dynamic load rating, radial
C0r
41,500 N
Basic static load rating, radial
Ca
12,400 N
Basic dynamic load rating, axial
C0a
32,500 N
Basic static load rating, axial
Cur
7,400 N
Fatigue load limit, radial
Cua
1,480 N
Fatigue load limit, axial
CG
3,700 1/min
Limiting speed
≈m
137.92 g
Weight
Mounting dimensions
da
40.5 mm
Mounting dimension shaft shoulder
ra max
0.3 mm
Maximum recess radius
D1
50.1 mm
Connection diameter snap ring
C2
14.2 mm
Connection width with snap ring
