INA XSU080318-RR
Slewing Rings
Crossed roller bearings standard series 08, without gear teeth, lamellar seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

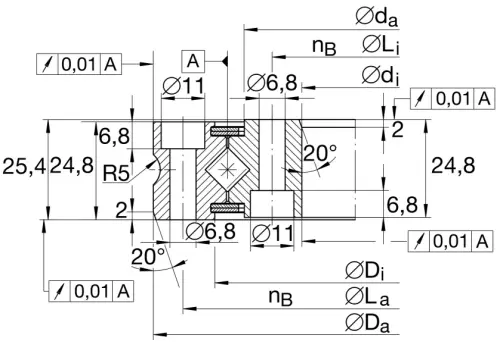

Main Dimensions & Performance Data
di
280 mm
Bore Diameter
0.032 mm
Bore diameter upper tolerance
0 mm
Bore diameter lower tolerance
Da
355 mm
Outside Diameter
0 mm
Outside diameter upper tolerance
-0.036 mm
Outside diameter lower tolerance
H
25.4 mm
Height
≈m
6.1 kg
Weight
