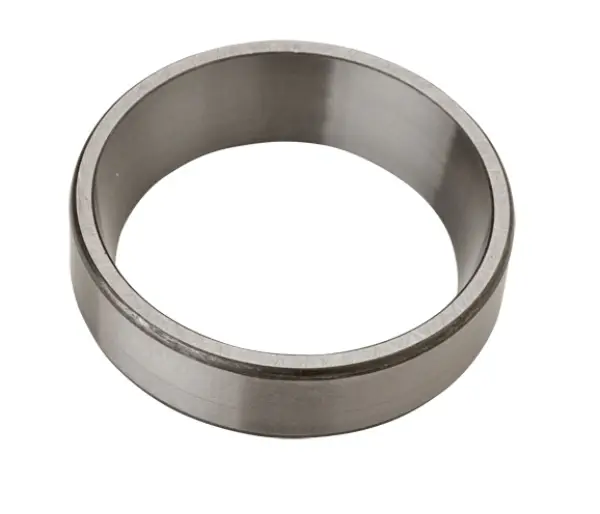

NTN 4520
Cup for Tapered Roller Bearing - Inch Series and J Series
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Bearing Cup
Material
Case Carburized Steel

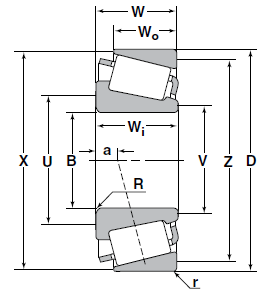

Dimensional Specifications
D
101.200 mm
Wo
33.338 mm
W
39.687 mm
r
3.300 mm
X
96.0 mm
Z
85.0 mm
