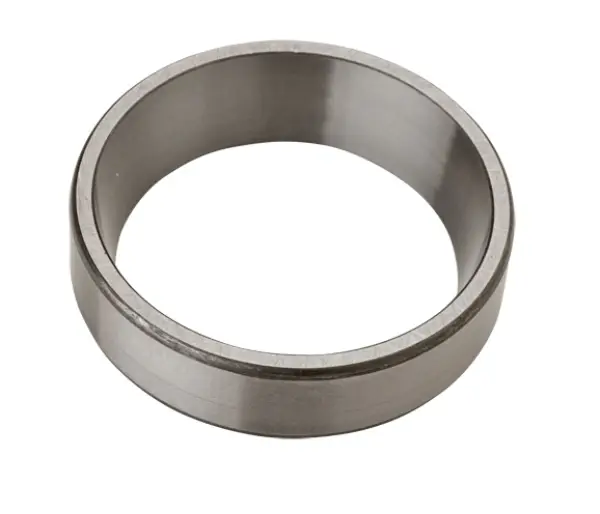

NTN LM806610
Cup for Tapered Roller Bearing - Inch Series and J Series
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Bearing Cup
Material
Case Carburized Steel
Weight
0.134 kg

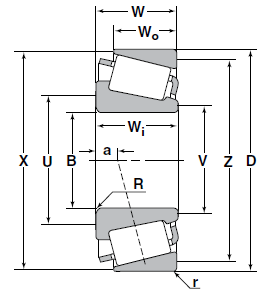

Dimensional Specifications
D
88.900 mm
Wo
13.492 mm
W
19.050 mm
r
2.000 mm
X
85.0 mm
Z
80.0 mm
