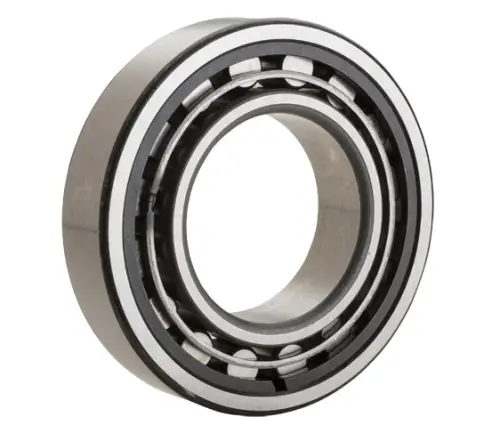

NTN MA1319TX
Single Row Cylindrical Roller Bearings - Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
445000 N
Dynamic Load Rating
355000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
B
95.000 mm
D
200.000 mm
W
45.000 mm
A
122.150 mm
C
173.530 mm
R
3.960 mm
U (Plain Rings)
115.100 mm
V (Rib Rings)
121.900 mm
X (Plain Rings)
181.900 mm
Z (Rib Rings)
173.500 mm
r
2.540 mm
