NTN MA7314TL
Single Row Cylindrical Roller Bearings - Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
335000 N
Dynamic Load Rating
267000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

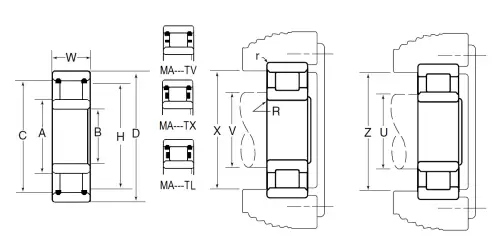

Dimensional Specifications
B
70.000 mm
D
150.000 mm
W
43.000 mm
A
89.200 mm
C
129.390 mm
R
3.180 mm
U (Plain Rings)
84.300 mm
V (Rib Rings)
89.200 mm
X (Plain Rings)
135.600 mm
Z (Rib Rings)
129.300 mm
r
2.030 mm
