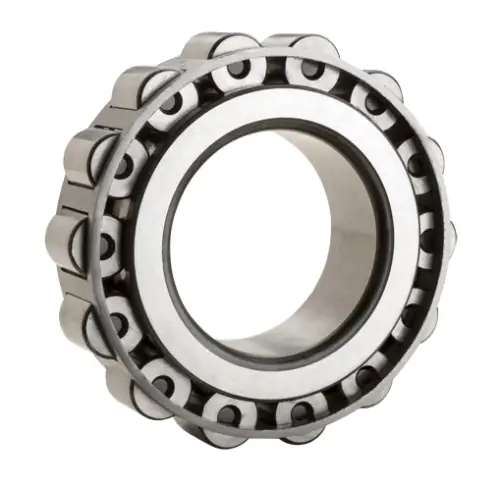

NTN MU1222M
Inner Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Static Load Rating
425000 N
Dynamic Load Rating
310000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

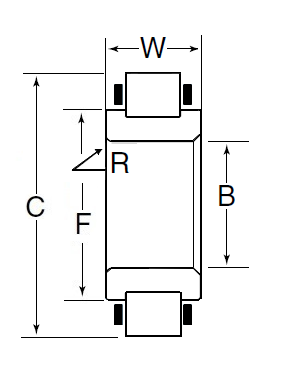

Dimensional Specifications
B
110.000 mm
C
176.200 mm
W
38.000 mm
F
134.870 mm
R
3.960 mm
