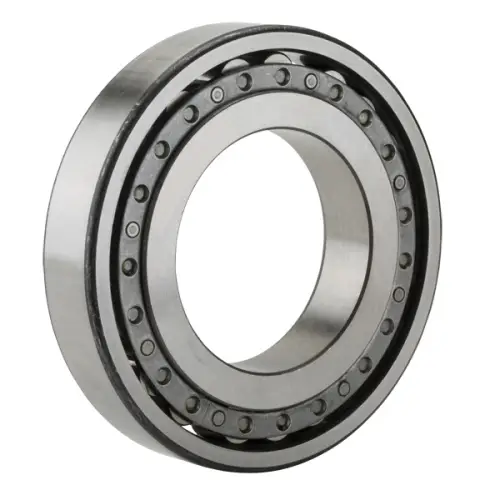

NTN MU5213CL
Single Row Cylindrical Roller Bearings - Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
242000 N
Dynamic Load Rating
170000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

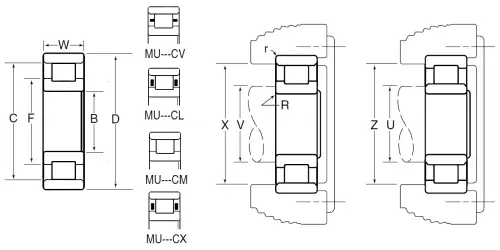

Dimensional Specifications
B
65.000 mm
D
120.000 mm
W
38.100 mm
C
105.820 mm
F
85.340 mm
R
2.540 mm
V (Rib Rings)
80.300 mm
X (Plain Rings)
110.000 mm
Z (Rib Rings)
105.700 mm
r
1.520 mm
