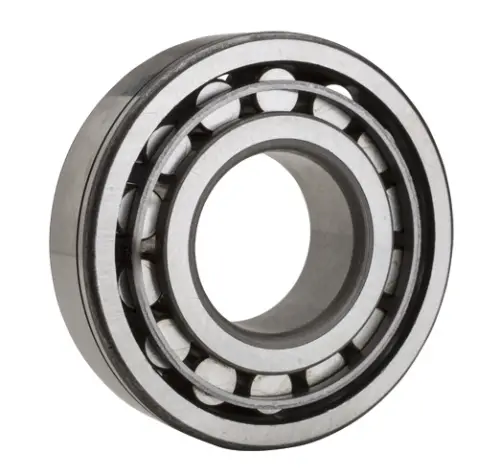

NTN MU7313DX
Single Row Cylindrical Roller Bearings - Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
294000 N
Dynamic Load Rating
238000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

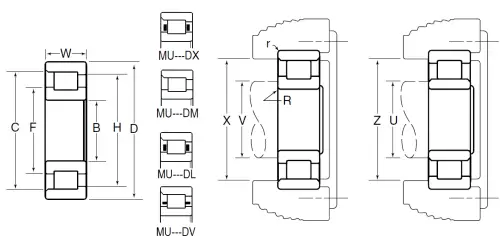

Dimensional Specifications
B
65.000 mm
D
140.000 mm
W
40.000 mm
C
121.360 mm
F
90.700 mm
H
114.680 mm
R
2.540 mm
U (Plain Rings)
78.700 mm
V (Rib Rings)
83.600 mm
X (Plain Rings)
127.000 mm
Z (Rib Rings)
121.200 mm
r
2.030 mm
