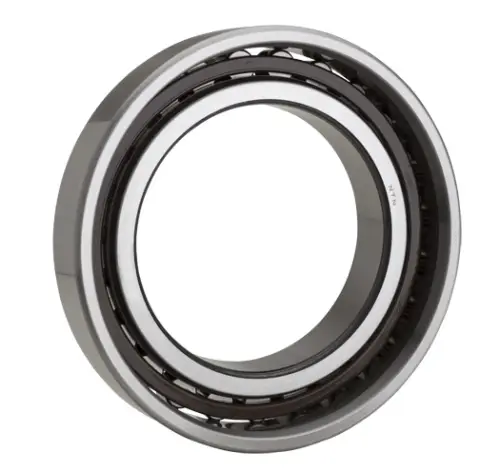

NTN N1007HSK
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
High Strength, Machined Brass
Limiting Speed - Oil
28200 RPM
Limiting Speed - Grease
18000 RPM
Taper
1:12
Bearing Design
Tapered Bore
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
22500 N
Dynamic Load Rating
21200 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

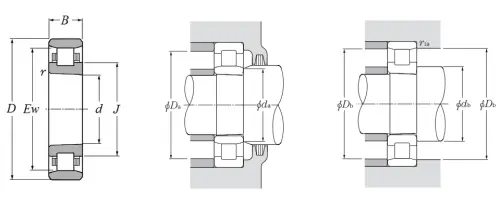

Dimensional Specifications
d
35.000 mm
D
62.000 mm
B
14.000 mm
Ew
55.000 mm
r
1.000 mm
da min
40.000 mm
Db max
57.000 mm
Db min
56.000 mm
r1as max
0.600 mm
