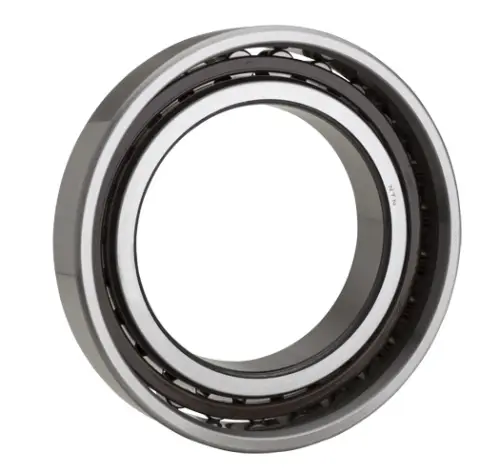

NTN N1008HSK
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
High Strength, Machined Brass
Limiting Speed - Oil
25300 RPM
Limiting Speed - Grease
16100 RPM
Taper
1:12
Bearing Design
Tapered Bore
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
26300 N
Dynamic Load Rating
24300 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

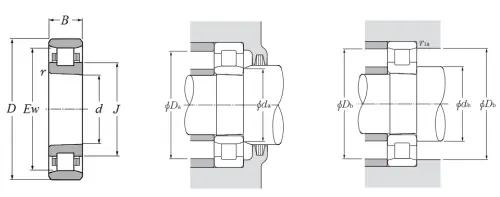

Dimensional Specifications
d
40.000 mm
D
68.000 mm
B
15.000 mm
Ew
61.000 mm
r
1.000 mm
da min
45.000 mm
Db max
63.000 mm
Db min
62.000 mm
r1as max
0.600 mm
