NTN N1009HS
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength, Machined Brass
Limiting Speed - Oil
22800 RPM
Limiting Speed - Grease
14500 RPM
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
32500 N
Dynamic Load Rating
29100 N
Enclosure
Open

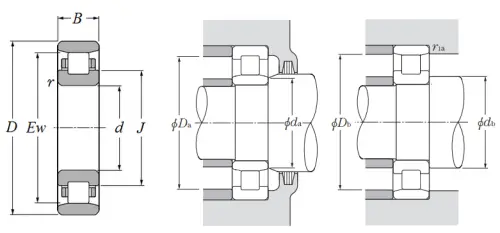

Dimensional Specifications
d
45.000 mm
D
75.000 mm
B
16.000 mm
Ew
67.500 mm
r
1.000 mm
da min
50.000 mm
Db max
70.000 mm
Db min
69.000 mm
r1as max
0.600 mm
