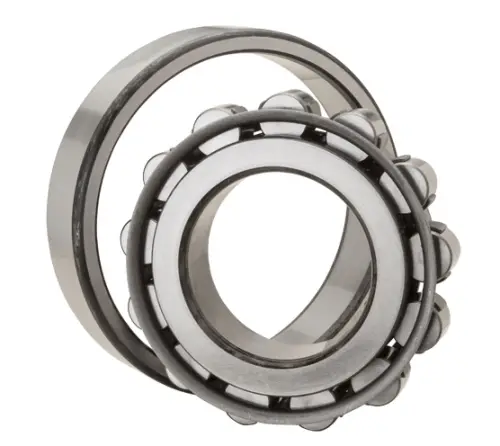

NTN N1010P4
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
3700 RPM
Precision
ISO Class 4
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
36000 N
Dynamic Load Rating
32000 N
Enclosure
Open
Weight
0.285 kg

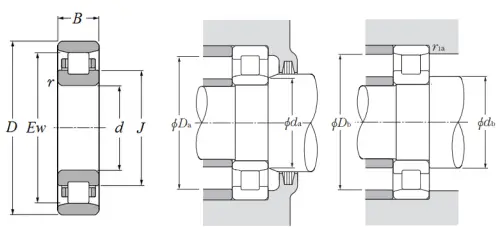

Dimensional Specifications
d
50.000 mm
D
80.000 mm
B
16.000 mm
Ew
72.500 mm
J
60.500 mm
r
1.000 mm
da min
54.000 mm
db min
55.000 mm
Da max
75.000 mm
Db max
76.000 mm
Db min
76.000 mm
r1as max
1.000 mm
