NTN N1011
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Machined Carbon Steel
Limiting Speed - Oil
9700 RPM
Limiting Speed - Grease
8200 RPM
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
44000 N
Dynamic Load Rating
37500 N
Enclosure
Open

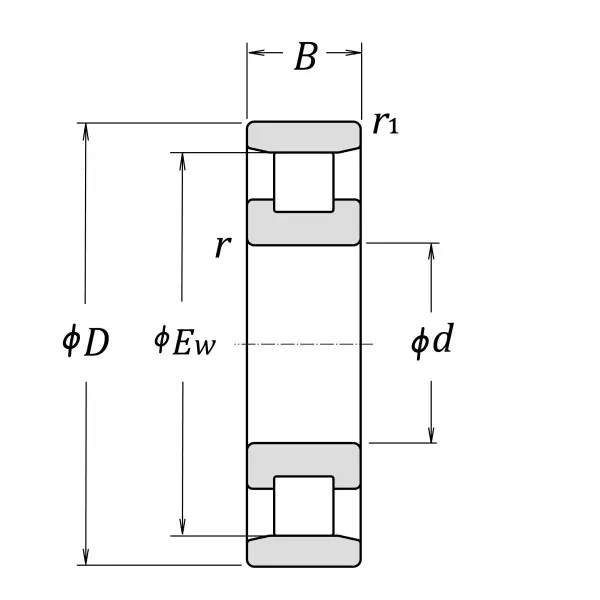

Dimensional Specifications
d
55.000 mm
D
90.000 mm
B
18.000 mm
Ew
80.500 mm
J
67.700 mm
r
1.100 mm

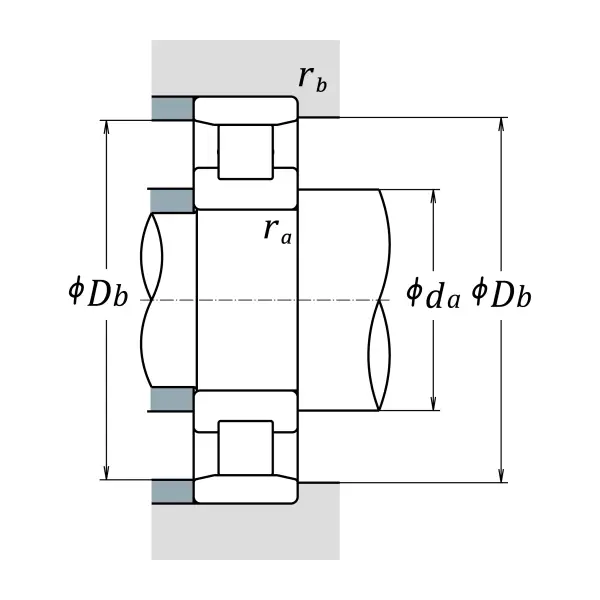

da min
60.000 mm
db min
61.500 mm
Da max
83.500 mm
Db max
85.000 mm
Db min
85.000 mm
r1as max
1.100 mm
