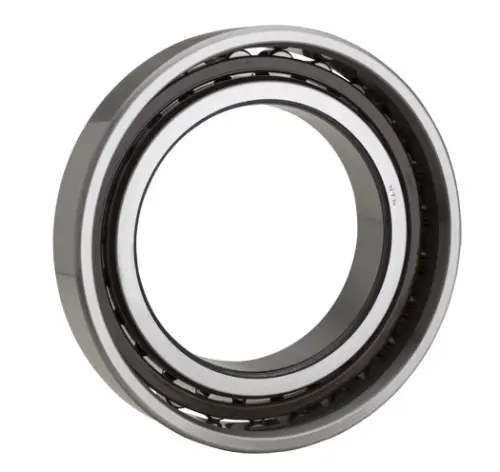

NTN N1011HSRKUP-4V1
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
Resin
Limiting Speed - Oil
30900 RPM
Limiting Speed - Grease
15400 RPM
Taper
1:12
Bearing Design
Tapered Bore
Precision
Special Precision
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
28700 N
Dynamic Load Rating
24100 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

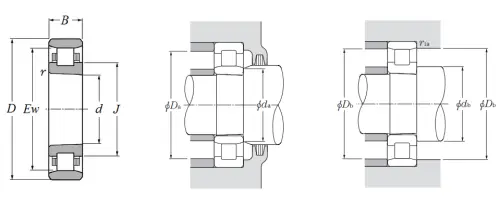

Dimensional Specifications
d
55.000 mm
D
90.000 mm
B
18.000 mm
Ew
81.000 mm
r
1.100 mm
da min
61.500 mm
Db max
83.500 mm
Db min
82.000 mm
r1as max
1.000 mm
