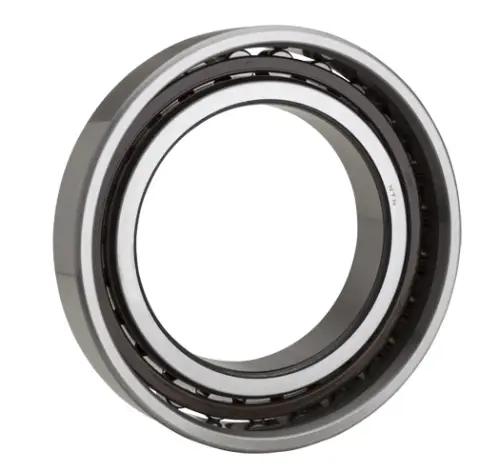

NTN N1012HSKC0NAP4
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Taper
1:12
Bearing Design
Tapered Bore
Precision
P4
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C0NA
Static Load Rating
48600 N
Dynamic Load Rating
40000 N
Enclosure
Open
Weight
0.442 kg
Operating Temperature Range
-40 to 120 ºC

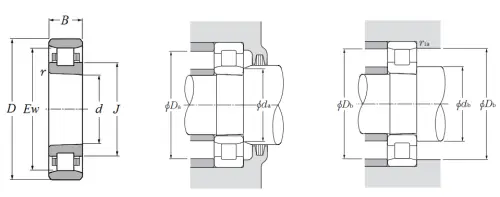

Dimensional Specifications
d
60.000 mm
D
95.000 mm
B
18.000 mm
Ew
86.100 mm
r
1.100 mm
da min
66.500 mm
Db max
88.500 mm
Db min
87.000 mm
r1as max
1.000 mm
