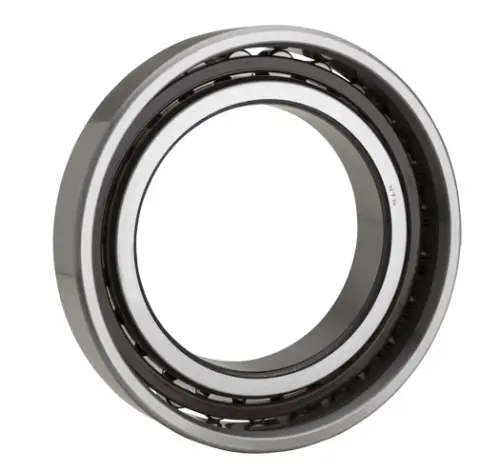

NTN N1012HSRT6KC0NAUP-2
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
PEEK
Limiting Speed - Oil
28900 RPM
Limiting Speed - Grease
14400 RPM
Taper
1:12
Bearing Design
Tapered Bore
Precision
Special Precision
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C0NA
Static Load Rating
28900 N
Dynamic Load Rating
23800 N
Enclosure
Open
Weight
0.804 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
60.000 mm
D
95.000 mm
B
18.000 mm
Ew
86.100 mm
r
1.100 mm
da min
66.500 mm
Db max
88.500 mm
Db min
87.000 mm
r1as max
1.000 mm
