NTN N1013
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Machined Carbon Steel
Limiting Speed - Oil
8200 RPM
Limiting Speed - Grease
7000 RPM
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
51000 N
Dynamic Load Rating
41000 N
Enclosure
Open

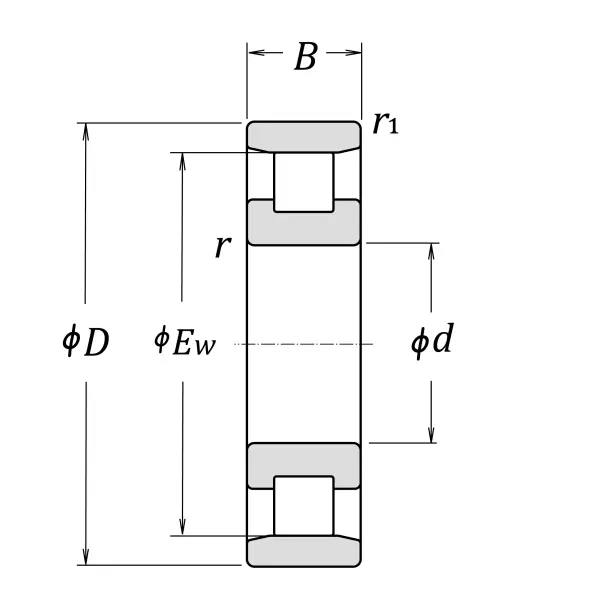

Dimensional Specifications
d
65.000 mm
D
100.000 mm
B
18.000 mm
Ew
90.500 mm
J
77.700 mm
r
1.100 mm

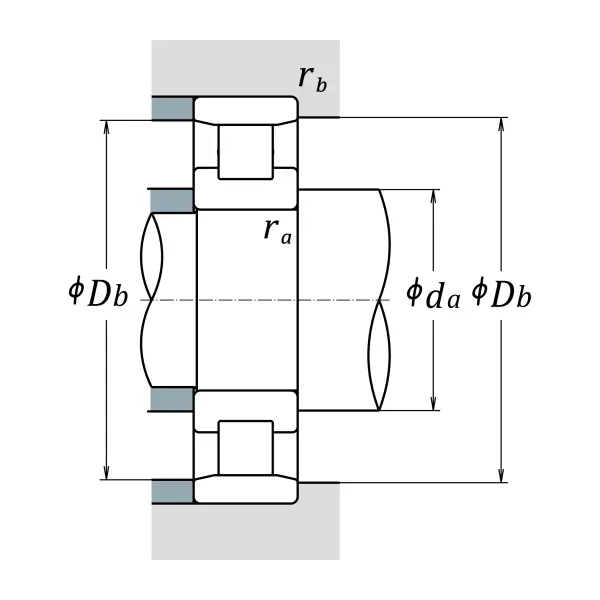

da min
70.000 mm
db min
71.500 mm
Da max
93.500 mm
Db max
95.000 mm
Db min
95.000 mm
r1as max
1.100 mm
