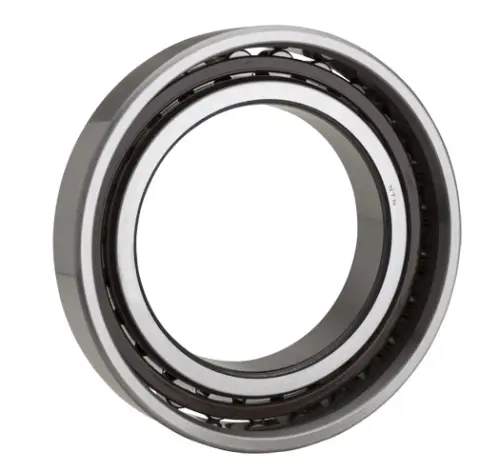

NTN N1014HSLK
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
PEEK
Limiting Speed - Grease
24700 RPM
Taper
1:12
Bearing Design
Tapered Bore
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
37500 N
Dynamic Load Rating
29200 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

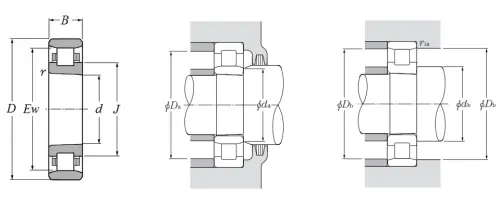

Dimensional Specifications
d
70.000 mm
D
110.000 mm
B
20.000 mm
Ew
100.000 mm
r
1.100 mm
da min
76.500 mm
Db max
103.500 mm
Db min
101.000 mm
r1as max
1.000 mm
