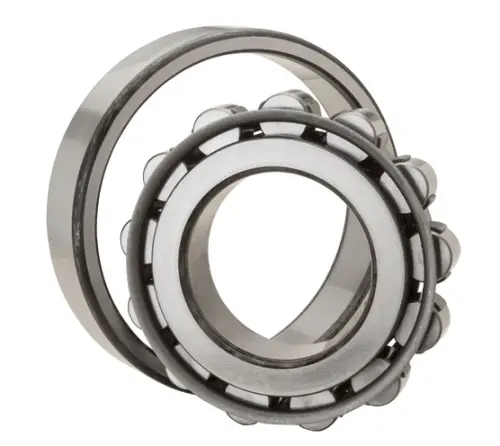

NTN N212ET2CS08UP-21
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Nylon
Precision
Special Precision
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
Special Clearance
Static Load Rating
107000 N
Dynamic Load Rating
97500 N
Enclosure
Open
Weight
0.792 kg

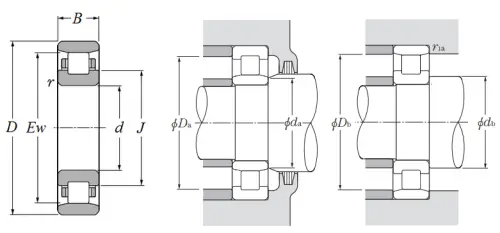

Dimensional Specifications
d
60.000 mm
D
110.000 mm
B
22.000 mm
J
77.600 mm
r
1.500 mm
da min
68.000 mm
Da max
102.000 mm
r1as max
1.500 mm
