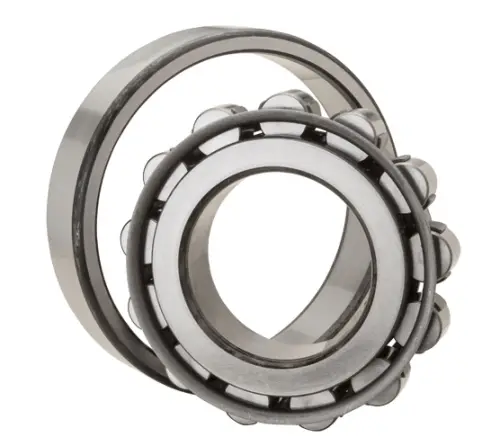

NTN N214
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
6500 RPM
Limiting Speed - Grease
5500 RPM
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
95000 N
Dynamic Load Rating
83500 N
Enclosure
Open
Weight
1.200 kg
Operating Temperature Range
-40 to 120 ºC

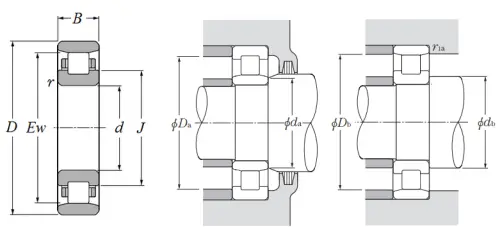

Dimensional Specifications
d
70.000 mm
D
125.000 mm
B
24.000 mm
Ew
110.500 mm
J
89.600 mm
r
1.500 mm
da min
78.000 mm
db min
78.000 mm
Da max
117.000 mm
Db max
117.000 mm
Db min
117.000 mm
r1as max
1.500 mm
