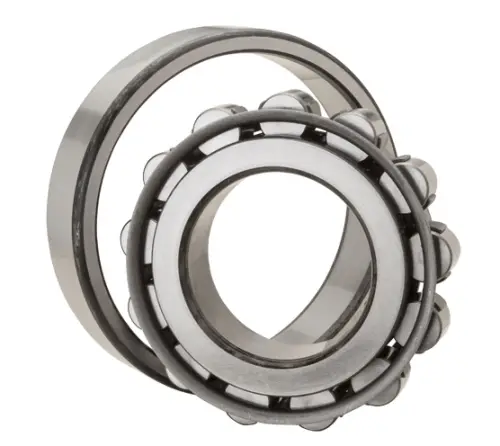

NTN N313G1C3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Limiting Speed - Oil
6000 RPM
Limiting Speed - Grease
5100 RPM
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
139000 N
Dynamic Load Rating
135000 N
Enclosure
Open
Weight
2.312 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
65.000 mm
D
140.000 mm
B
33.000 mm
Ew
121.500 mm
J
91.000 mm
r
2.000 mm
da min
76.000 mm
db min
76.000 mm
Da max
129.000 mm
Db max
129.000 mm
Db min
129.000 mm
r1as max
2.000 mm
