NTN N314G1
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Limiting Speed - Oil
5500 RPM
Limiting Speed - Grease
4700 RPM
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
168000 N
Dynamic Load Rating
158000 N
Enclosure
Open
Weight
2.847 kg
Operating Temperature Range
-40 to 120 ºC

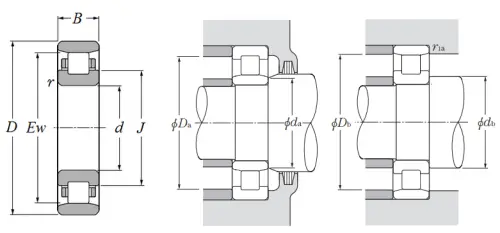

Dimensional Specifications
d
70.000 mm
D
150.000 mm
B
35.000 mm
Ew
130.000 mm
J
98.000 mm
r
2.000 mm
da min
81.000 mm
db min
81.000 mm
Da max
139.000 mm
Db max
139.000 mm
Db min
139.000 mm
r1as max
2.000 mm
