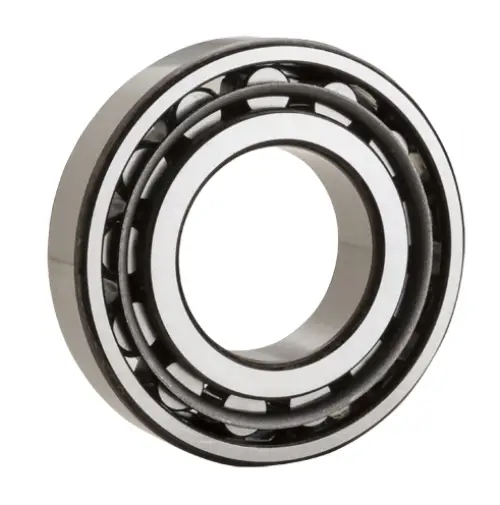

NTN NF208ET2XC3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Nylon
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
9400 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
55500 N
Dynamic Load Rating
55500 N
Enclosure
Open
Dimensional Specifications
d
40.000 mm
D
80.000 mm
B
18.000 mm
J
53.900 mm
r
1.100 mm
da min
46.500 mm
Da max
73.500 mm
r1as max
1.100 mm
