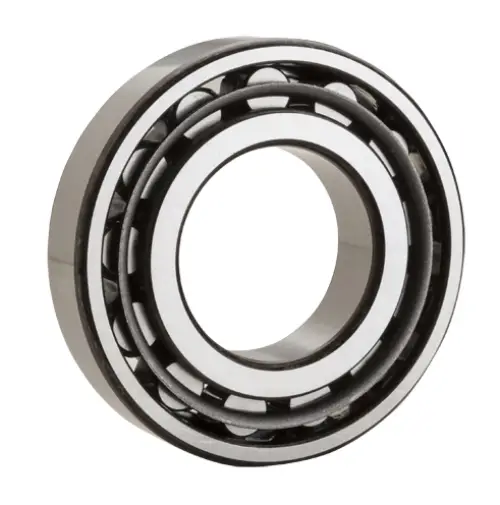

NTN NF212
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
7600 RPM
Limiting Speed - Grease
6400 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
75000 N
Dynamic Load Rating
68500 N
Enclosure
Open
Weight
0.837 kg

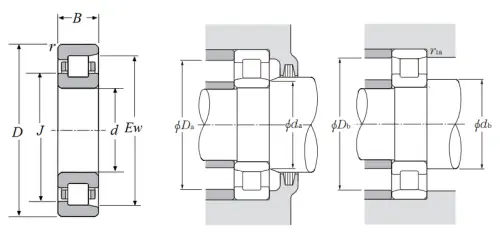

Dimensional Specifications
d
60.000 mm
D
110.000 mm
B
22.000 mm
Ew
97.500 mm
J
78.400 mm
r
1.500 mm
da min
68.000 mm
db min
68.000 mm
Da max
102.000 mm
Db max
102.000 mm
Db min
100.000 mm
r1as max
1.500 mm
