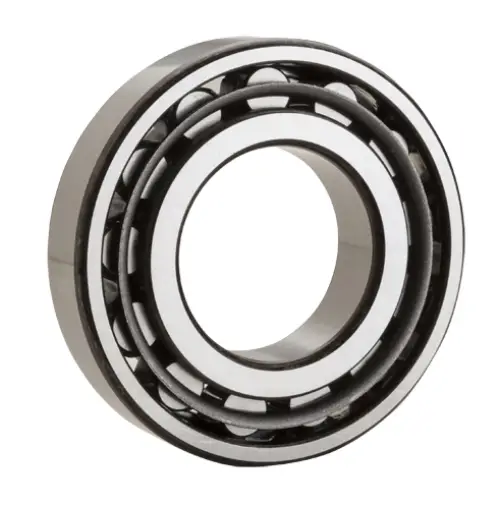

NTN NF413
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
4300 RPM
Limiting Speed - Grease
3600 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
186000 N
Dynamic Load Rating
182000 N
Enclosure
Open
Weight
3.616 kg

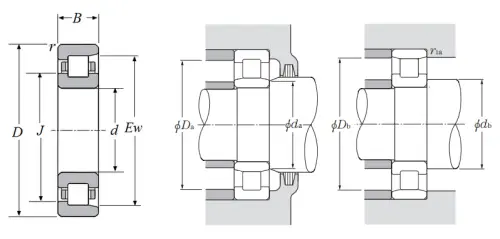

Dimensional Specifications
d
65.000 mm
D
160.000 mm
B
37.000 mm
Ew
135.300 mm
J
98.500 mm
r
2.100 mm
da min
76.000 mm
db min
76.000 mm
Da max
149.000 mm
Db max
149.000 mm
Db min
137.000 mm
r1as max
2.100 mm
