NTN NH207
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
34000 N
Dynamic Load Rating
35500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

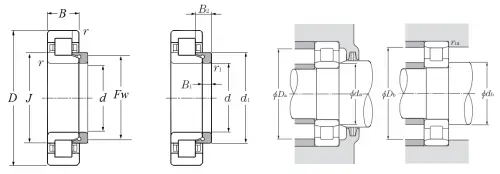

Dimensional Specifications
d
35.000 mm
D
72.000 mm
B
17.000 mm
Fw
43.800 mm
d1
47.600 mm
B1
4.000 mm
B2
8.000 mm
J
47.600 mm
r
1.100 mm
r1
0.600 mm
da min
39.000 mm
Da max
65.500 mm
