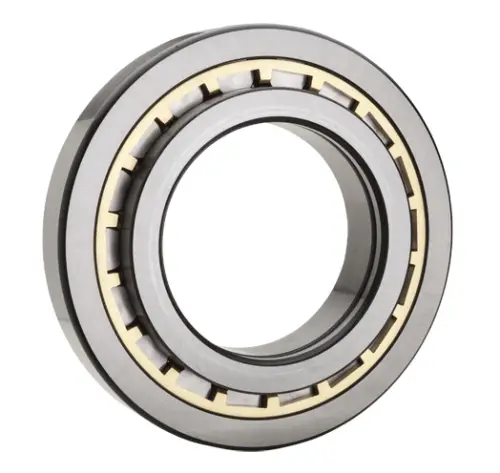

NTN NH210
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
51000 N
Dynamic Load Rating
48000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

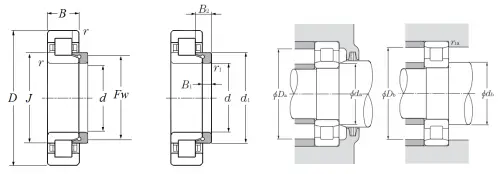

Dimensional Specifications
d
50.000 mm
D
90.000 mm
B
20.000 mm
Fw
60.400 mm
d1
64.600 mm
B1
5.000 mm
B2
10.000 mm
J
64.600 mm
r
1.100 mm
r1
1.100 mm
da min
56.500 mm
db min
56.500 mm
Da max
83.500 mm
Db max
83.500 mm
Db min
83.000 mm
