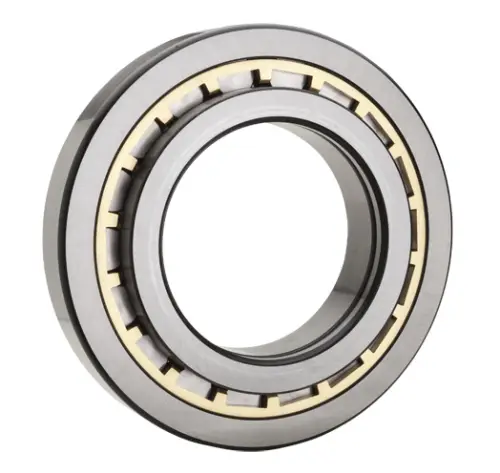

NTN NH2213
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
149000 N
Dynamic Load Rating
120000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

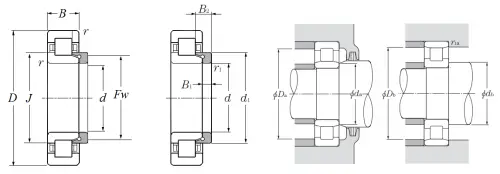

Dimensional Specifications
d
65.000 mm
D
120.000 mm
B
31.000 mm
Fw
79.600 mm
d1
84.800 mm
B1
6.000 mm
B2
11.500 mm
J
84.800 mm
r
1.500 mm
r1
1.500 mm
da min
73.000 mm
db min
73.000 mm
Da max
112.000 mm
Db max
112.000 mm
Db min
108.000 mm
